We provide a comprehensive raised access floor system solution, encompassing premium product supply and expert installation services. Our offerings are tailored to meet the demands of diverse architectural and commercial projects, ensuring superior functionality, and enduring quality. Backed by our commitment to excellence, we deliver customized, high-performance flooring systems that elevate spaces with precision and professionalism

MATRIX is a leading global manufacturer of advanced access flooring systems, established through a joint venture with multinational partners. By combining cutting-edge technology, high-quality materials, and innovative manufacturing processes, MATRIX delivers world-class flooring solutions designed for durability, functionality, and aesthetics.

factory, located in Shanghai, spans 5,000 square meters and employs over 400 skilled professionals, ensuring precision and quality in every product.

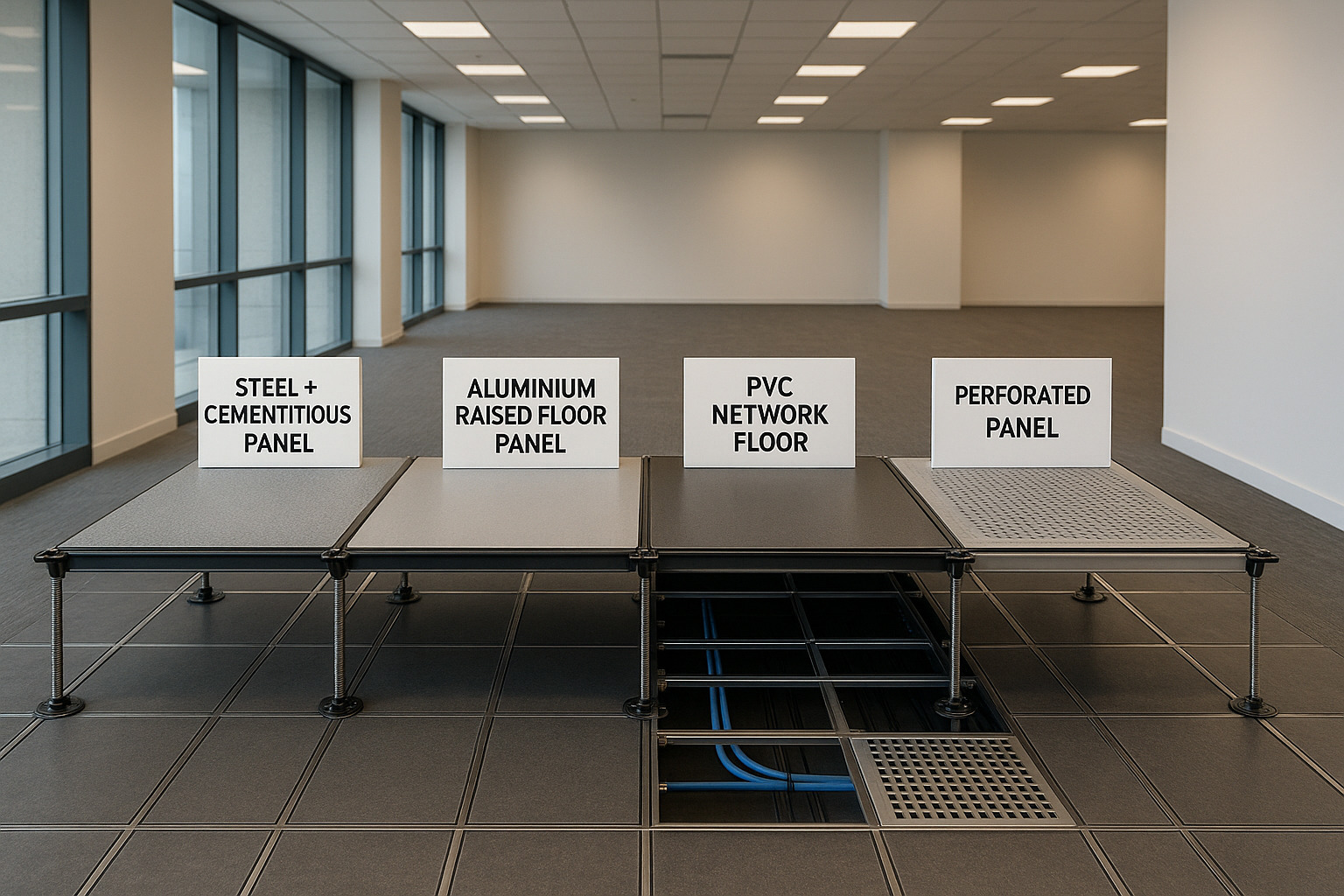

Steel Access Flooring with Cementitious Panel

• Series ASH: Hollow steel panel with welded construction and a deep-drawn bottom pan for consistent strength.

• Series ASF: Hollow steel panel filled with lightweight, high-strength cementitious material, ideal for heavy equipment sites.

• Features:

  • Non-combustible and corrosion-resistant.

  • High mechanical strength, suitable for light to extra-heavy-duty applications.

  • Available in various metal thicknesses to meet structural grade requirements.

  • Compatible with rigid grid or bare panel corner-lock installations.

  • Zinc-plated adjustable pedestals and galvanized steel stringers for robust understructure.

Aluminium Raised Floor Panel

• Lightweight yet durable, designed for high-performance environments.

• Meets stringent international standards for access flooring.

• Ideal for clean rooms, data centers, and specialized facilities.

PVC Network Floor

• Properties:

  • Environmentally friendly: Low-carbon, recyclable, and radiation-free.

  • High flexibility: Easy relocation of cables and sockets without professional expertise.

  • High capacity: Spacious trenches accommodate large cable volumes.

• Applications: Perfect for offices, computer rooms, and intelligent buildings.

Cable Management System (CMS)

• Height Range: Adjustable from 50mm to 100mm to suit various building environments.

• Design: Widened deck for easy cable feeding, double-layered steel panels for maximum cable protection.

• Benefits: Saves time and cost by eliminating the need for additional construction during cable upgrades.

Perforated Panels

• Features:

  • 45% open area for optimal airflow, ideal for data centers and clean rooms.

  • Available with or without adjustable dampers.

  • Class A flame spread rating, non-combustible.

  • Compatible with High-Pressure Laminate (HPL) or vinyl coverings.

• Specifications:

  • Concentrated load capacity: 350kg.

  • Damper airflow area: 0-22%.

  • Hole diameter: 8mm.

Understructure Systems

• Golden Series: Pedestal heights from 80mm to 1,000mm, with bolted stringer systems for stability.

• Silver Series: Free-lay system with HPL finishing, adjustable heights from 800mm to 1,600mm.

• Bolted Stringer Grid Pattern: Robust 2x2 grid for enhanced structural support.

Accessories

• Outlet Boxes: Available in 2, 3, or 4 compartments for versatile applications.

• Grommets: 2", 3", or 4" round black plastic grommets for cable management.

• Glass Floor Options: For aesthetic and functional customization.
