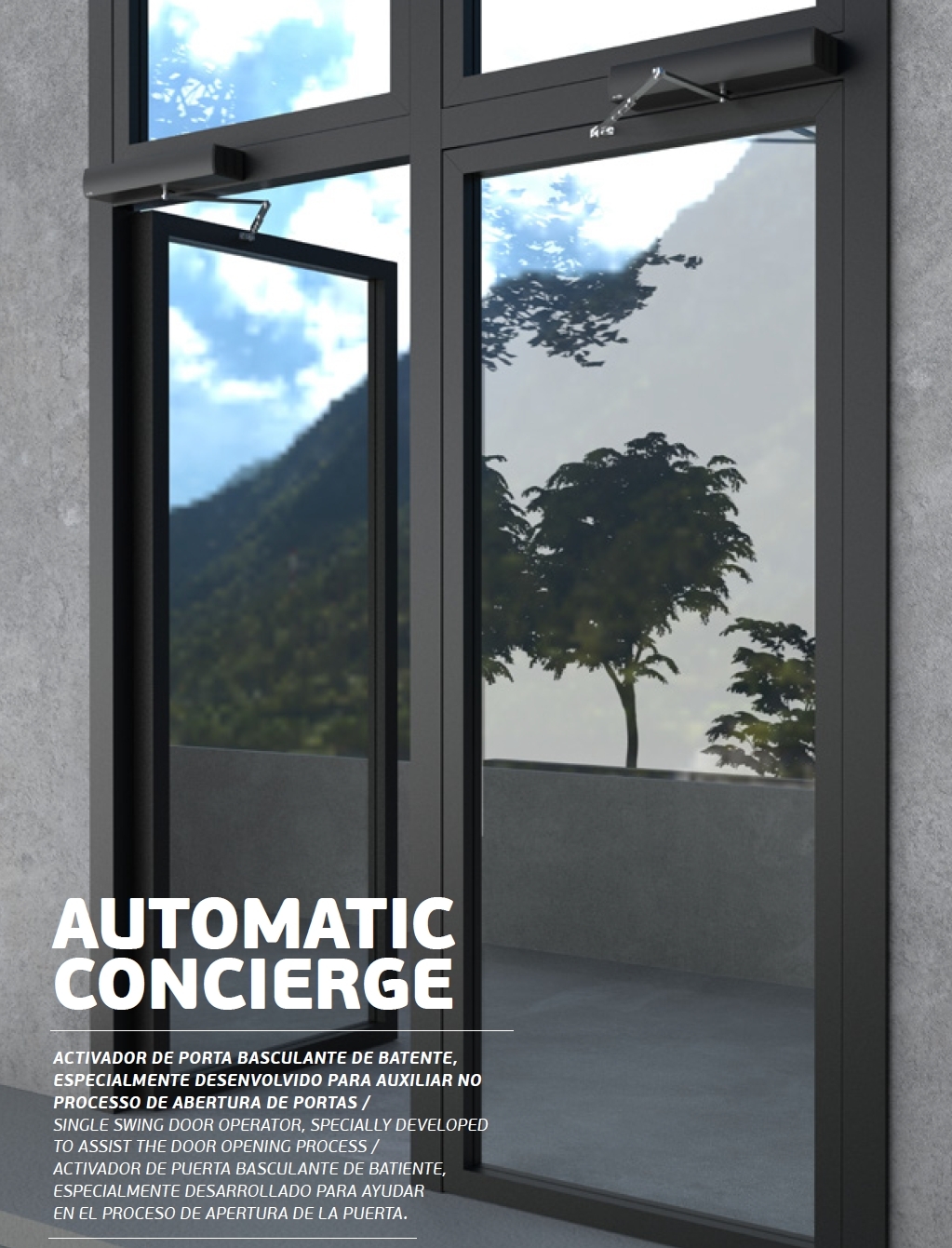

JNF IN.21.900 Automatic Swing Door System

It can be triggered fully automatically (radar or TOUCHLESS switch) or with low force touch (TOUCH TO OPEN function, pressure button or remote control).

With protection grade of IP21, capable to use on Metallic, wood or glass doors. Offers different arm options (standard / sliding).

Specifications

• Size: 515x80x115mm
• Weight: 8kg
• Door width: 1600mm (máx.)
• Door wieght: 140kg (máx.)
• Working temperature:-20ºC ~ +50ºC
• Input voltage: AC90 - 250V
• Output voltage: 24V DC (⁺/₋ 10%) - 3A
• Open degree: máx. 115º (adjustable)
• Open/close speed: 45º / s (adjustable)
• Opening time: 0 - 60 seconds (adjustable)
• Protection class: IP21
• Function push&go
• Certified transformer: 90v/250V - 50W
• 1000000 cycles

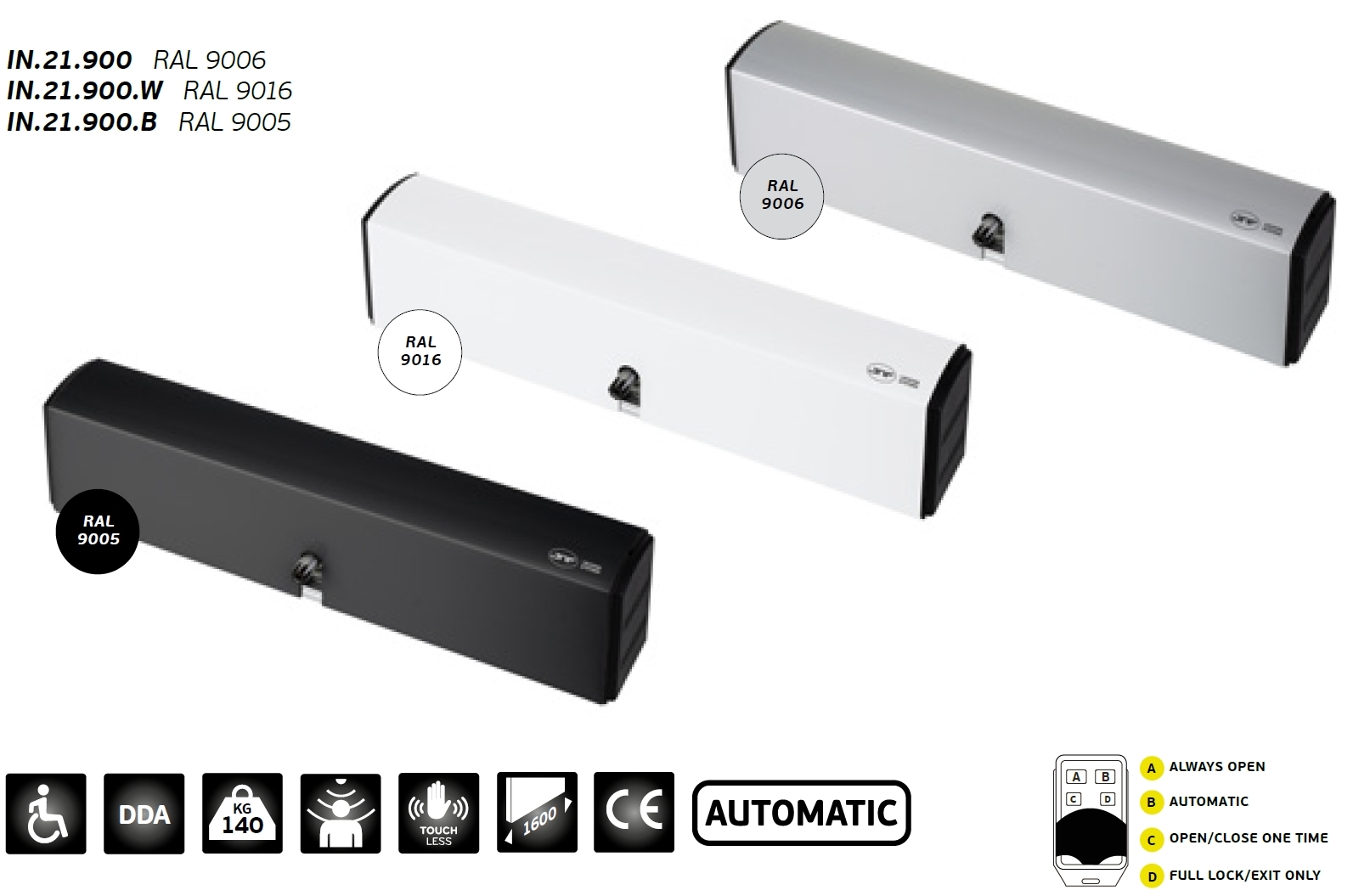

JNF offers Black ( RAL 9005 ) , White (RAL 9016) and Silver (RAL 9006) of colour selection to clients. Fulfil different design requirement.
