Automatic Door Solution

Offers automatic door operator supply with installation service.

JNF Linear Polaris

Max 80kg per leaf

JNF Mecano

Max 80kg per leaf

JNF K7 System

Max 150kg per leaf

JNF Auto Swing Door

Max 140kg per leaf

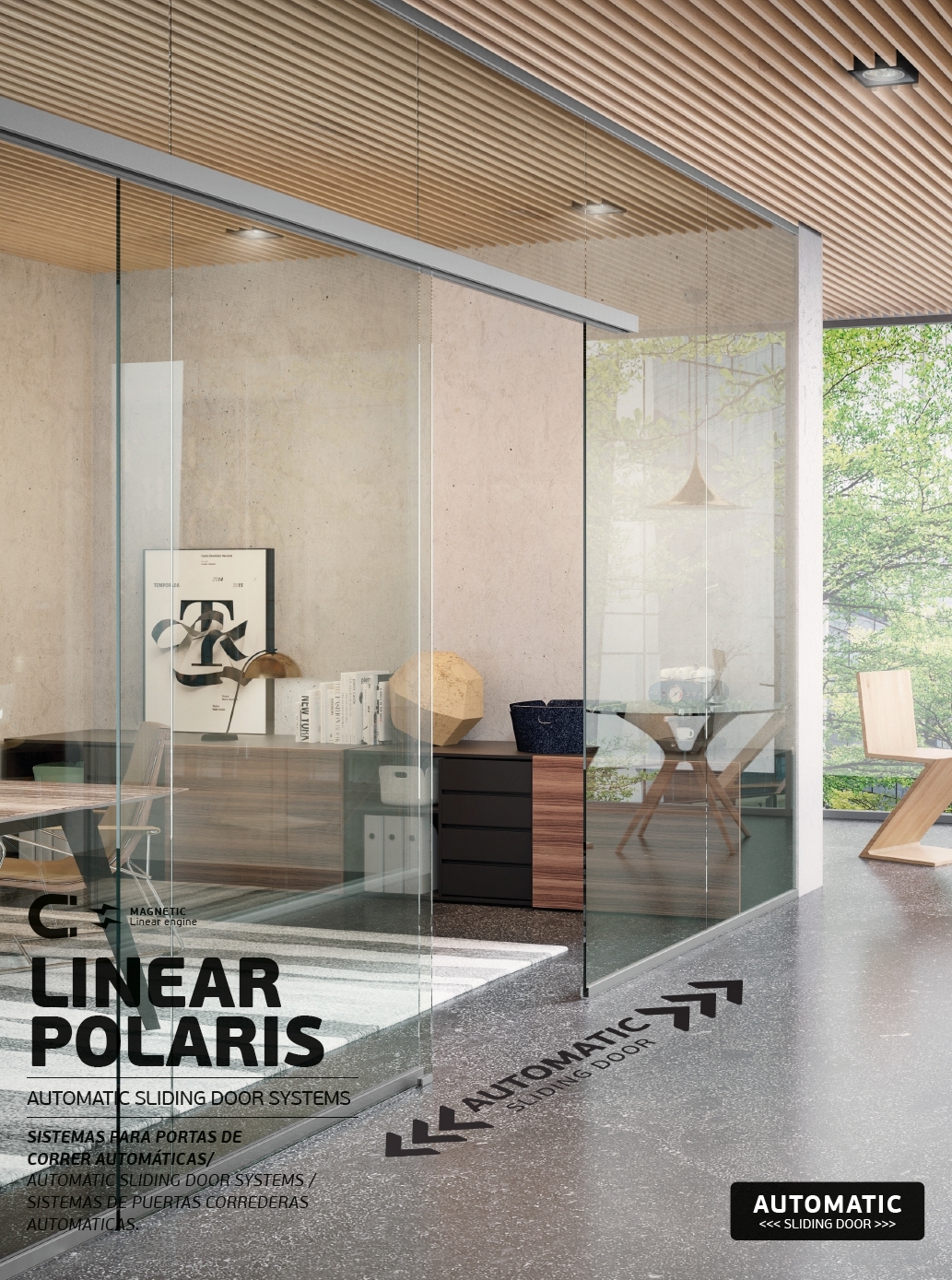

JNF Linear Polaris Sliding System (Max 80kg)                     Click here to download catalog

Specification

  • Single Leaf Door Weight : Min 5kg , Max 80kg
  • Double Leaf Door Weight : Max 80kg / Leaf
  • Max Door Width : 1,500mm
  • Min Door Width : 950mm
  • Motor Type : Linear motor with permanent magnets
  • Noise Lever : <50dB
  • Door Type : Timber , Glass , Metal
  • Door Thickness : Timber ( >30mm ) , Glass ( 8 - 10 mm)
  • Cycle Test : 1,000,000 times
  • Product proved by EN Standard
    • Directive 2006/42/CE
    • EN ISO 12100:2012
    • EN ISO 13857:2008
      .............................................................
      Directive 2004/108/CE (EMC)
      EN 61000-3-2:2006 + A1:2011
      EN 61000-3-3:2008
      EN 61000-6-1:2007
      EN 61000-6-3:2007+A1:2011
      .............................................................
      Directive 2004/95/CE Safety
      UNE EN 60335-1:2012+A11:2014

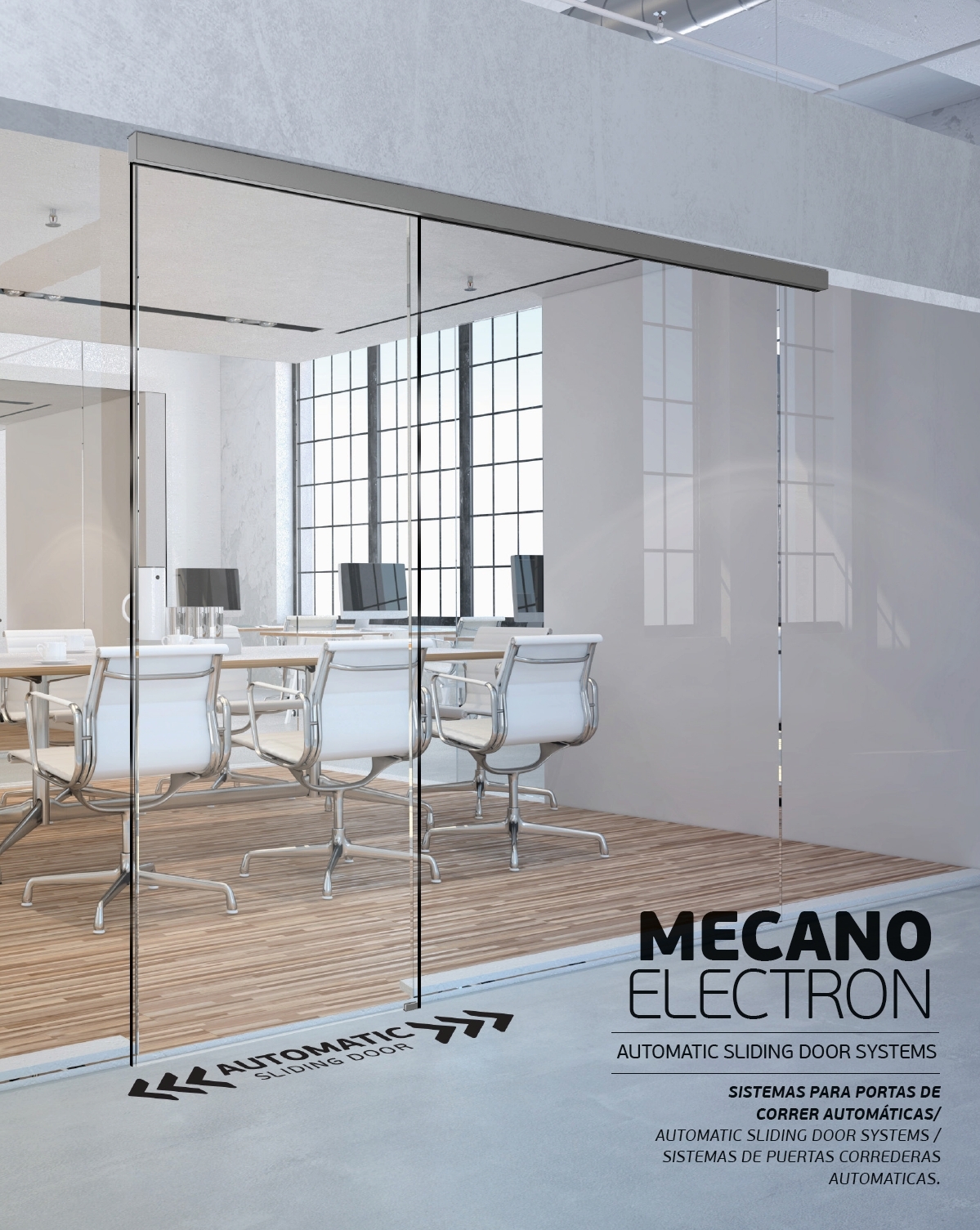

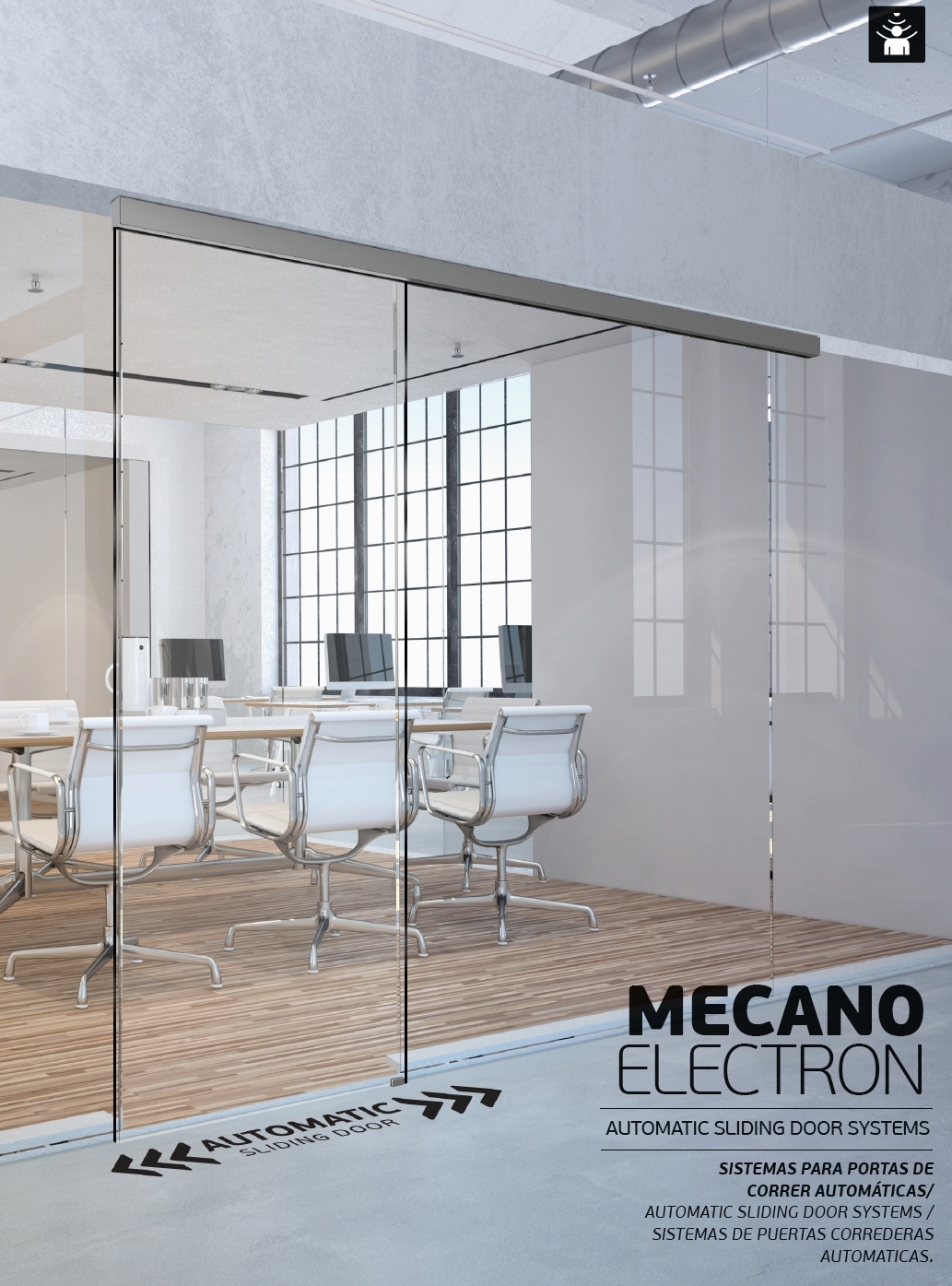

JNF Mecano Electron (80kg)

Specification

  • Single Leaf Door Weight : Min 20kg , Max 80kg
  • Max Door Width : 1,100mm
  • Motor Type : Belt electric motor
  • Noise Level : <55dB
  • Door Material : Timber / Wood , Glass , Metal
  • Door Thickness : Timber / Wood ( Min : 30mm) , Glass ( 8 - 10mm)
  • Cycle Test : 500,000 times
  • Elegant and contemporary design with 75x77mm ultra small track
  • Approved by EN Standard
    • EN 16005
      EN ISO 12100:2012
      EN ISO 13849
      EN 61000-6-1
      EN 61000-6-2
      EN 61000-6-3
      EN 61000-6-4
      .............................................................
      Compatibilidade / Compatibility
      UNE EN 60335-1 / 2
      UNE EN 60335-2 -103

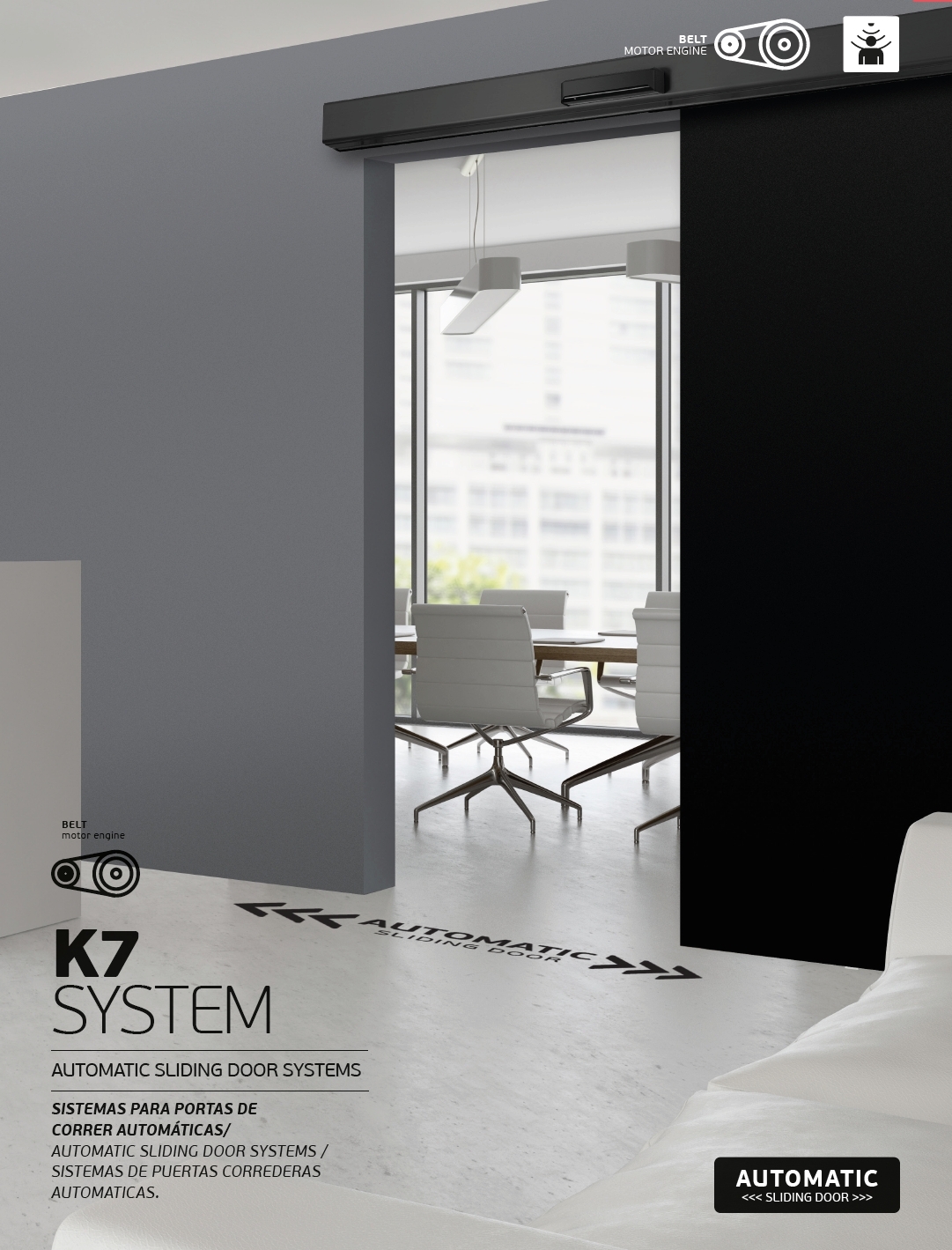

JNF K7 System (Max 150kg)                                                           Click here to download catalog

Specification

  • Single Leaf Door Weight : Max 150kg
  • Double Leaf Door Weight : Max 140kg per leaf
  • Max Door Width : 1,300mm
  • Min Door Width : 700mm
  • Motor Type : Belt electric motor
  • Noise Level : Max 75dB
  • Door Material : Timber / Wood , Glass , Metal
  • Door Thickness : Timber / Wood ( 30 - 60 mm ) , Glass ( 8 - 12mm)
  • Cycle Test : 1,000,000 times
  • Approved by EN Standard
    • ​EN 12100
    • EN 60204-1

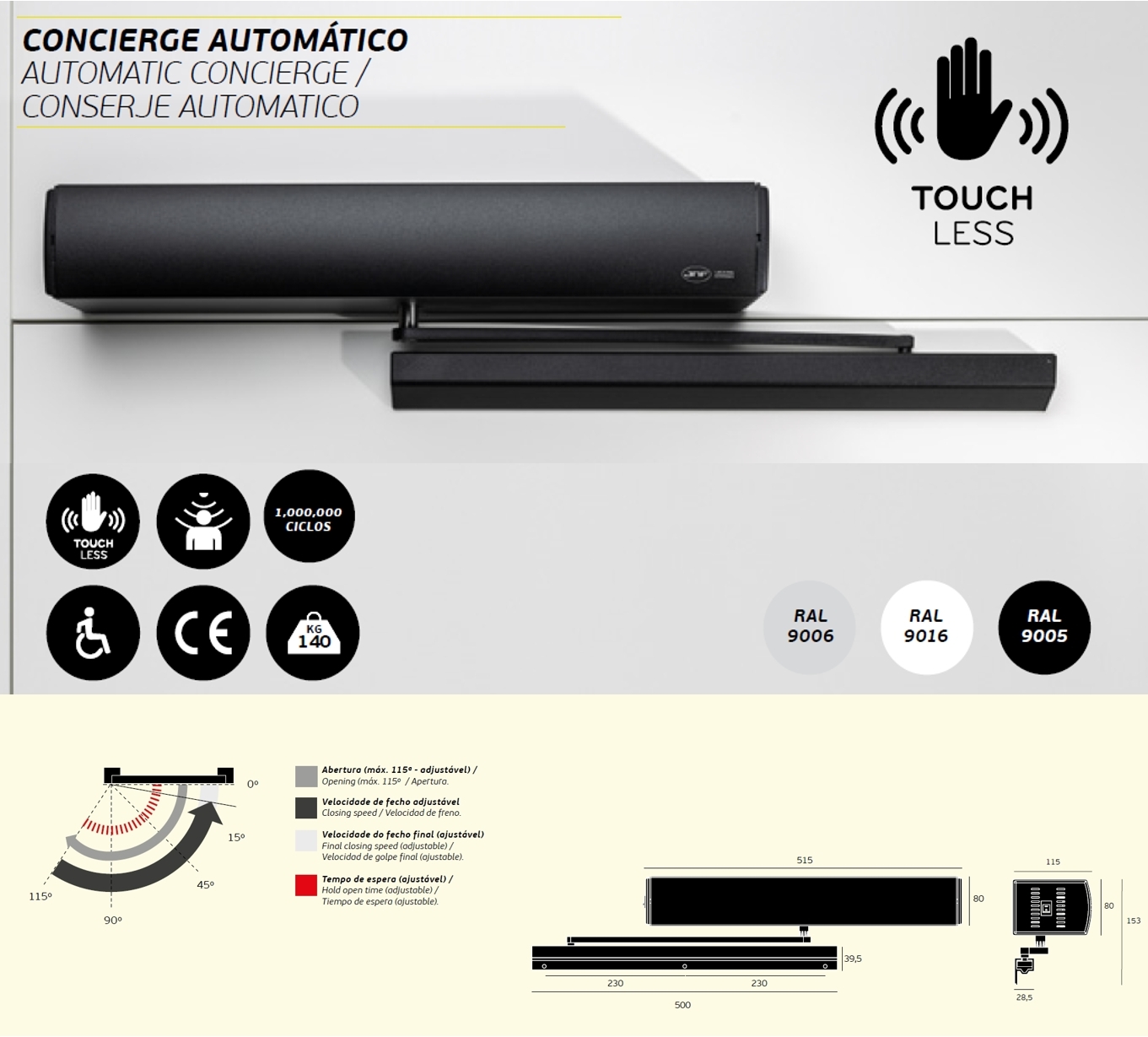

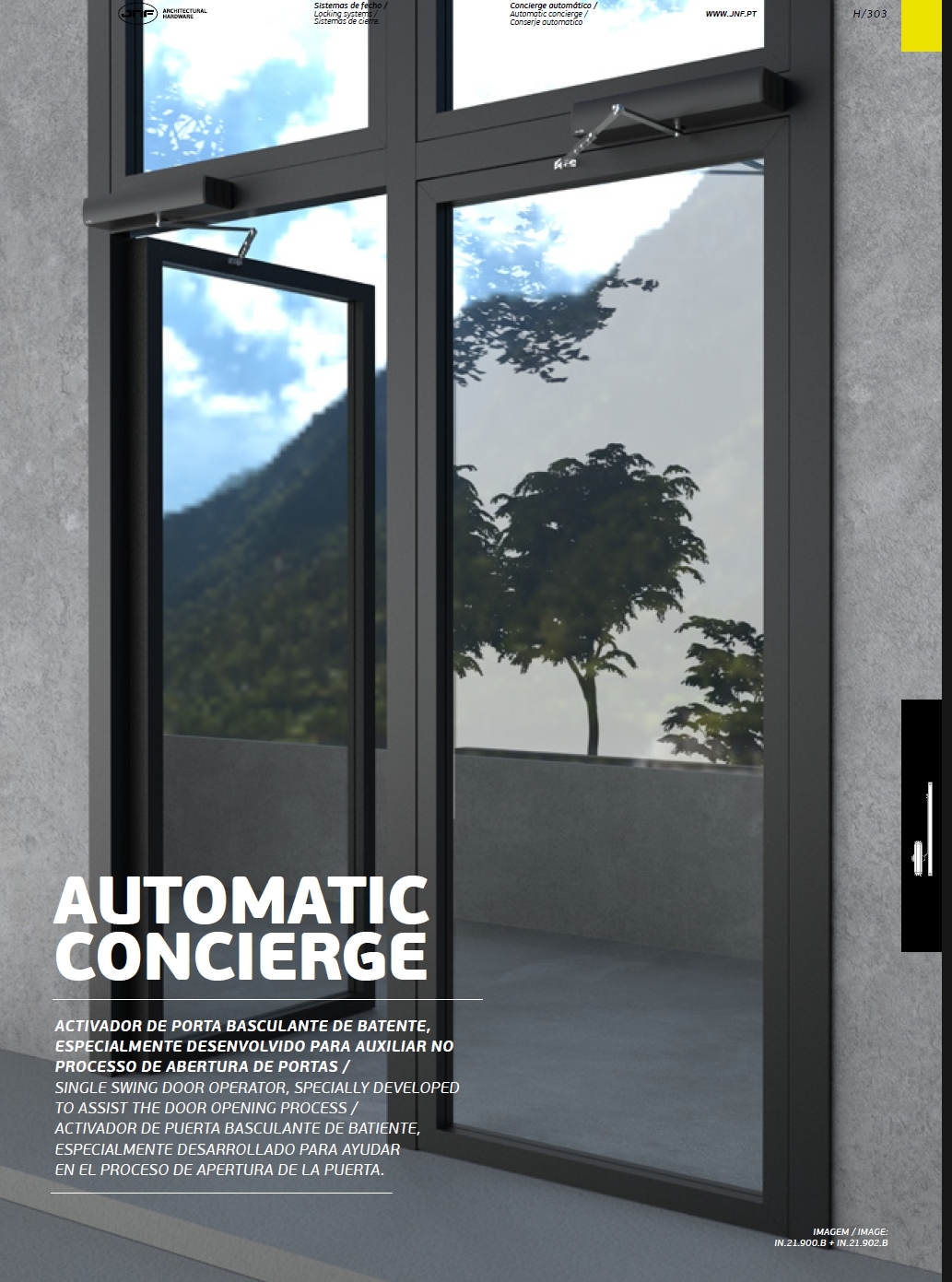

JNF IN.21.900 Automatic Swing Door Operator                         Click here to download catalog

Specification

  • Max door weight per leaf : 140kg
  • Max door width : 1,600mm
  • Door Opening Angle : Max 115º (Adjustable)
  • Opening / Closing Speed : 45º per second (Adjustable)
  • Door Open Time : 0 - 60 seconds (Adjustable)
  • Door Material : Timber / Wood , Glass , Metal
  • Protection Level : IP21
  • Cycle Test : 1,000,000 times
